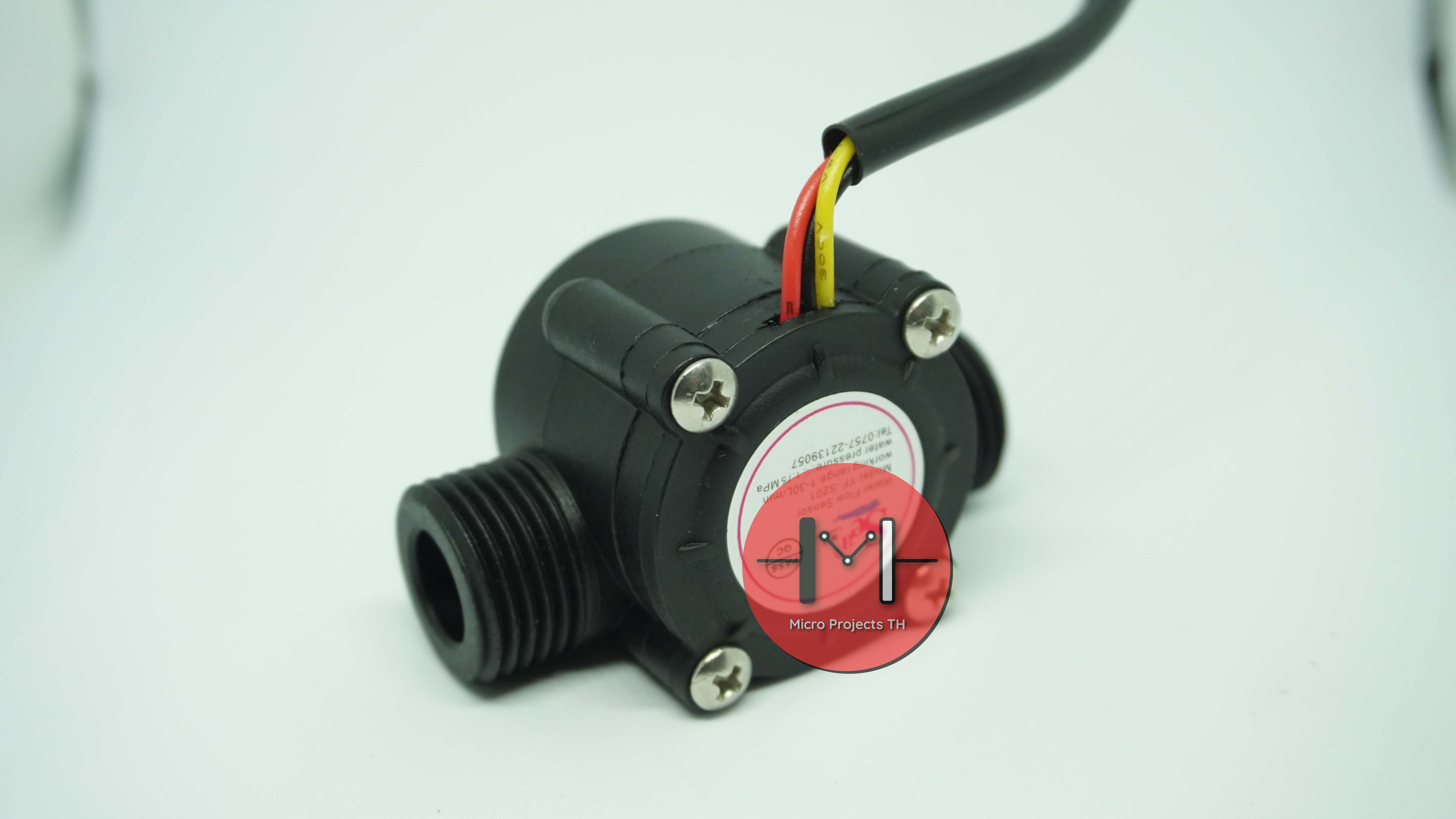

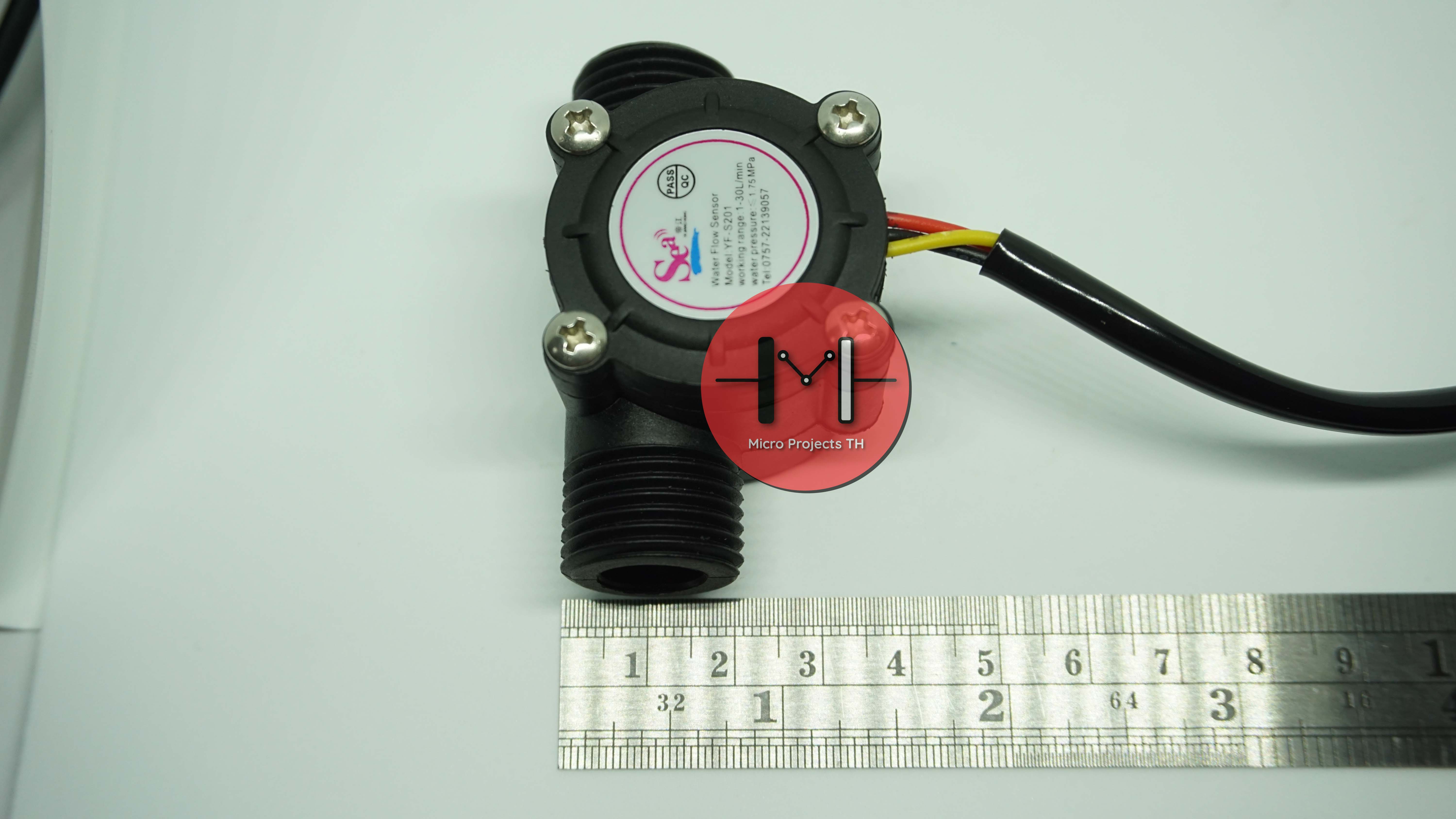

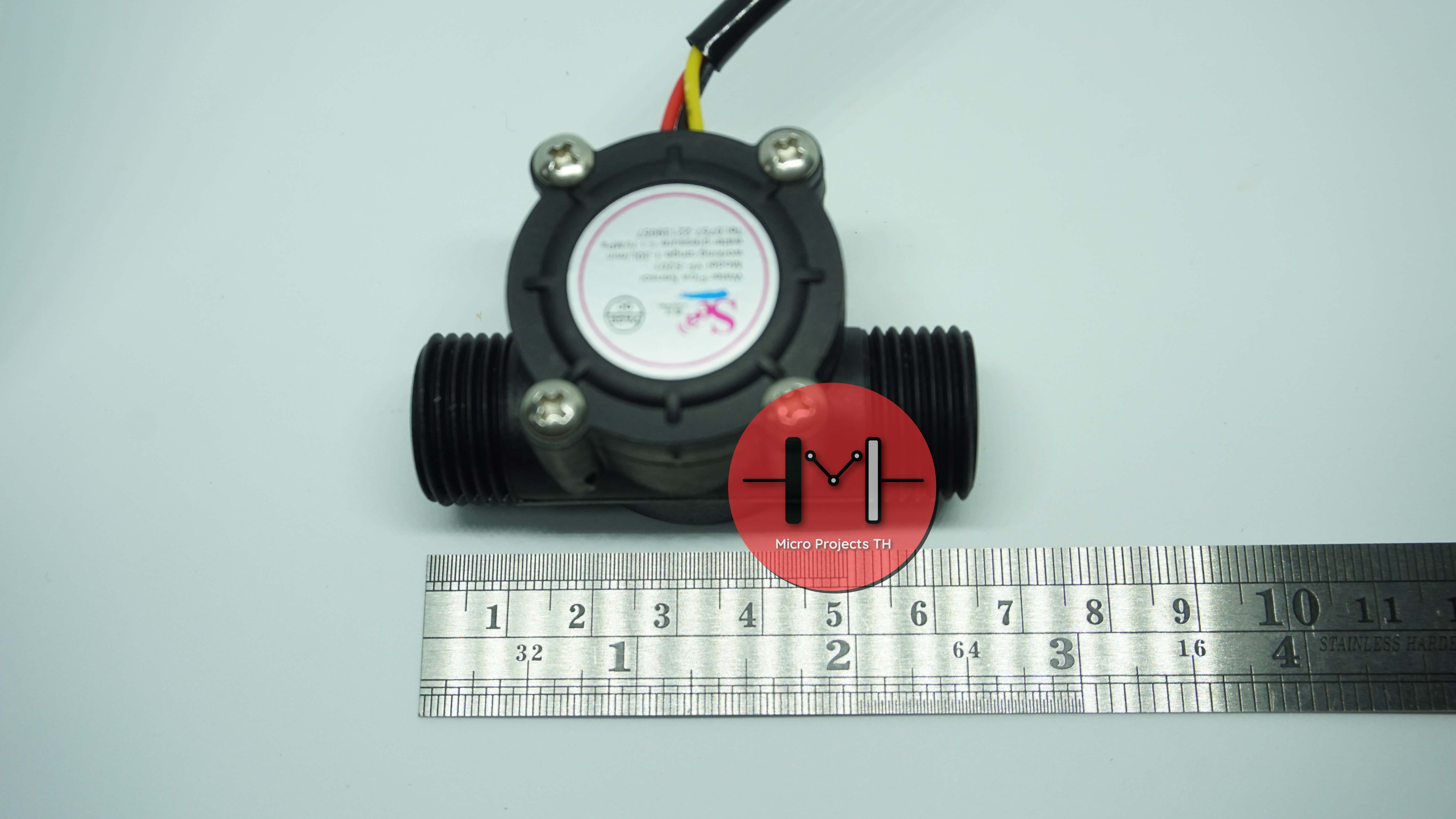

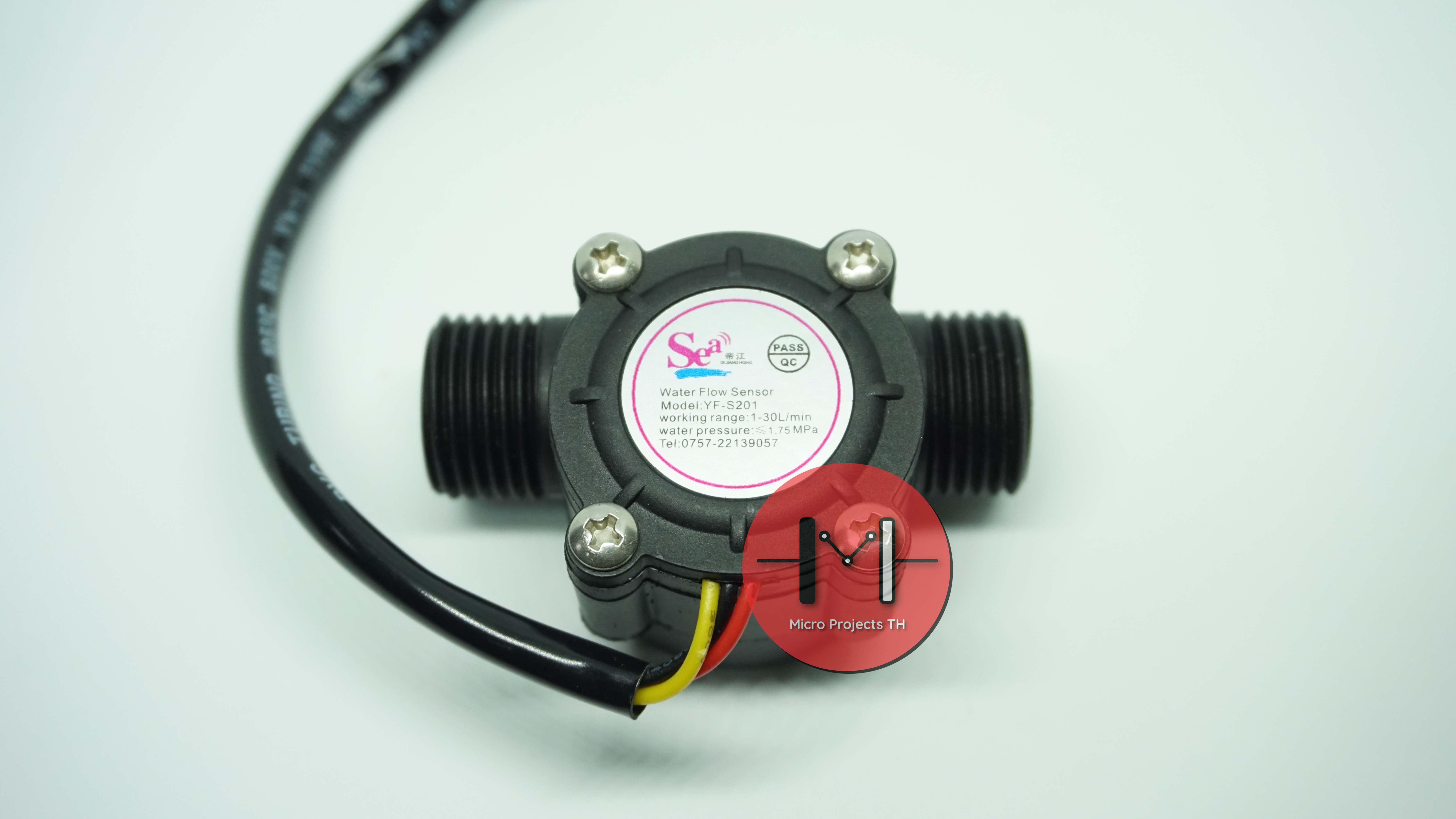

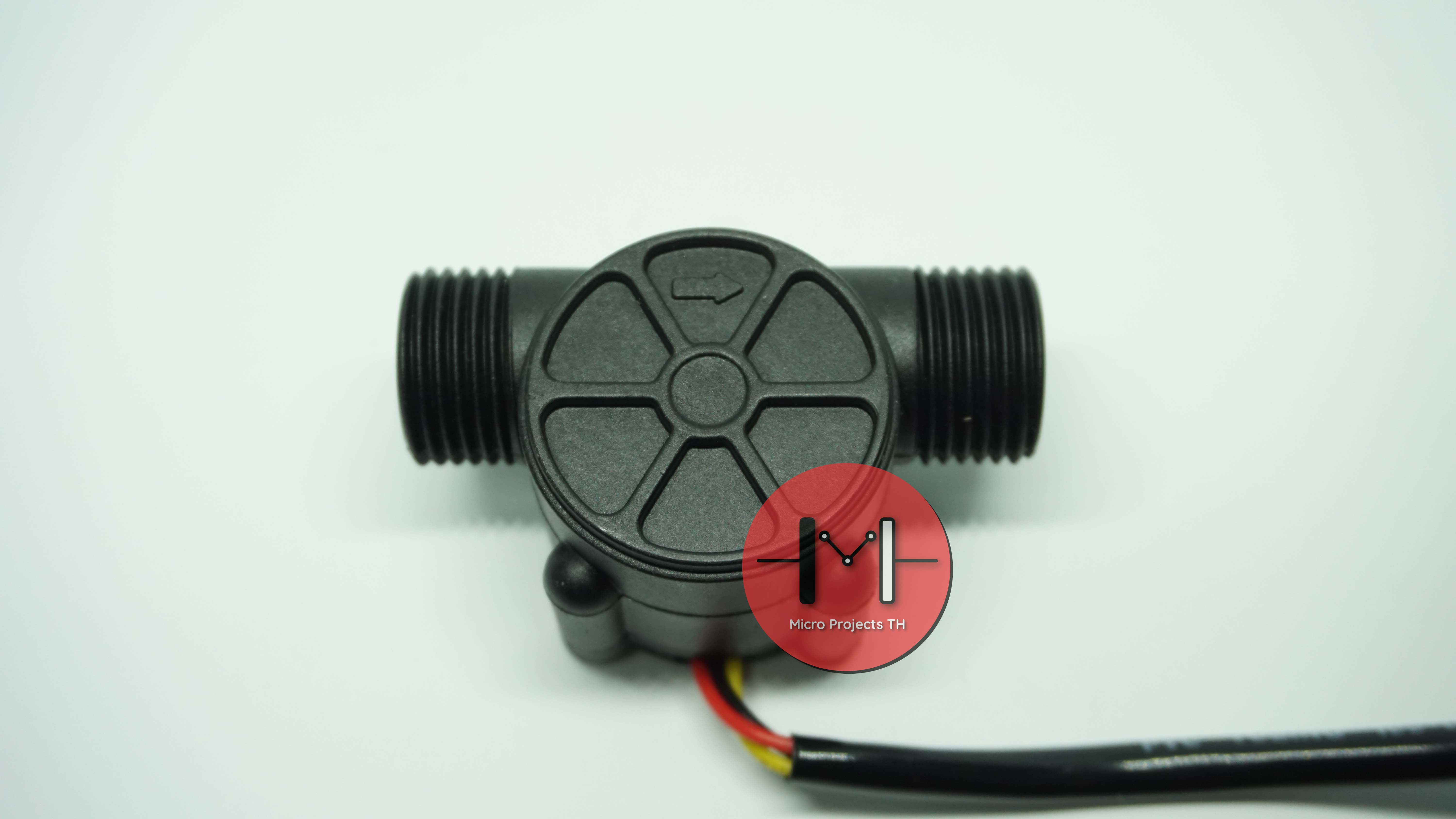

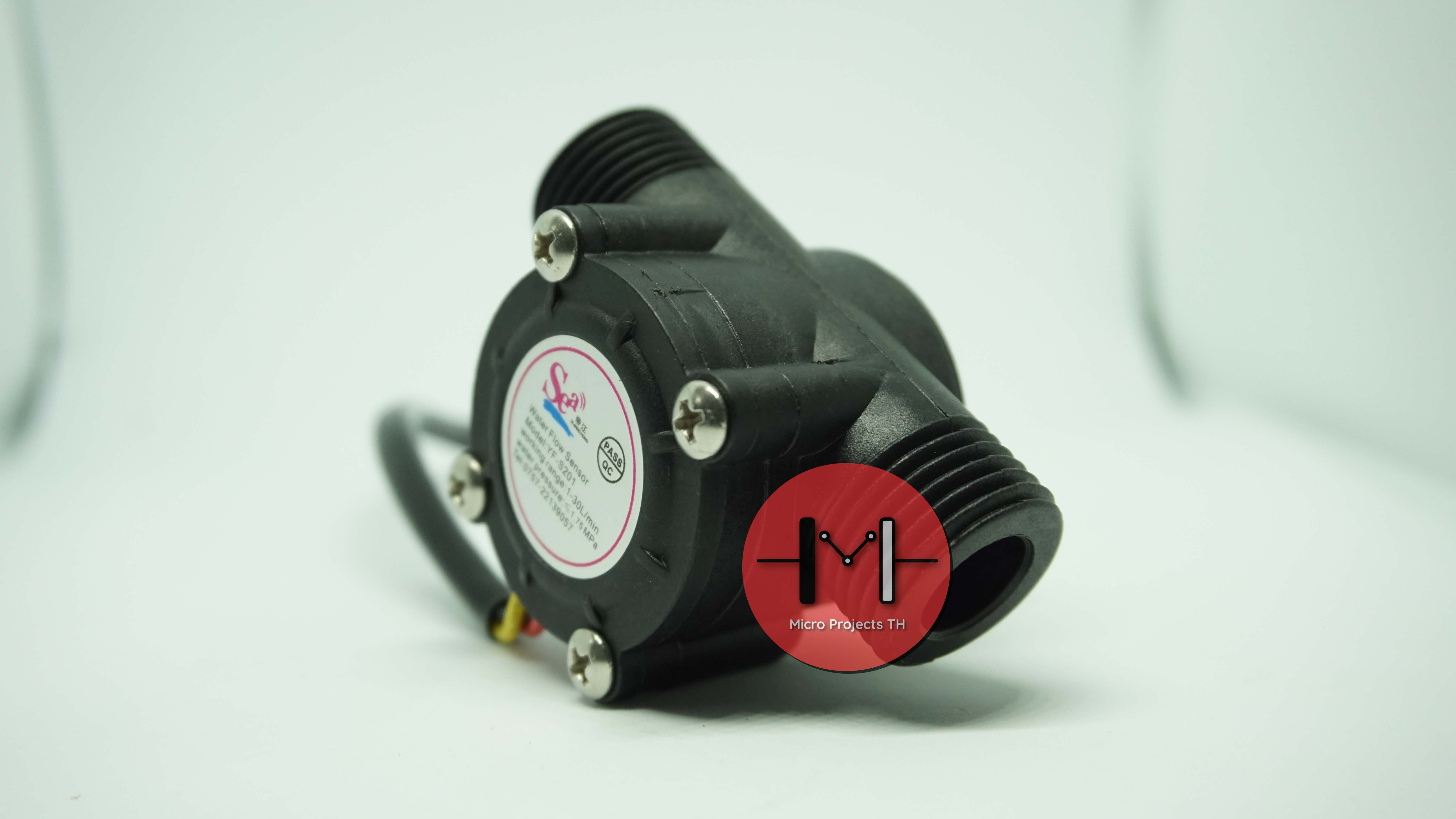

เซ็นเซอร์วัดอัตราการไหลของน้ำ(YF-S201) Water Flow Sensor 1-30L/min 2.0MPa 4 หุน

Features:

Mainly used for water testing, water cooling system

Application: Water heaters, credit card machines, water vending machine, flow measurement device

The impeller is inlaid with stainless steel beads for wear resistance.

The structure of the seal ring adopts force from top to bottom to prevent water leakage

The Hall element is imported, the line is filled with a waterproof seal rubber ring, and the inlet waterproof silicone strengthens the waterproof

All raw materials meet ROHS standards

High amplitude: ≥ 4.6V

Low amplitude: ≤ 0.5V

Electric strength: 1250V/min

Insulation resistance: ≥ 100MΩ

Hydrostatic pressure testing: ≤ 2.0Mpa



Specification:

The lowest rated working voltage: DC4.5 5V-24V

Maximum operating current: 15mA (DC 5V)

Working voltage range: DC 5~18V

Load capacity: ≤ 10mA (DC 5V)

Use temperature: ≤ 80°C

Operating humidity range: 35%~90%RH (no frost)

Allowing pressure: pressure 2.0Mpa

Temperature: -25 ~ +80 °C

External threads: 1/2"

Outer diameter: 20mm

Intake diameter: 9mm

Outlet diameter: 12mm


GitHub: https://github.com/zapzrat/Water-Flow-Sensor
