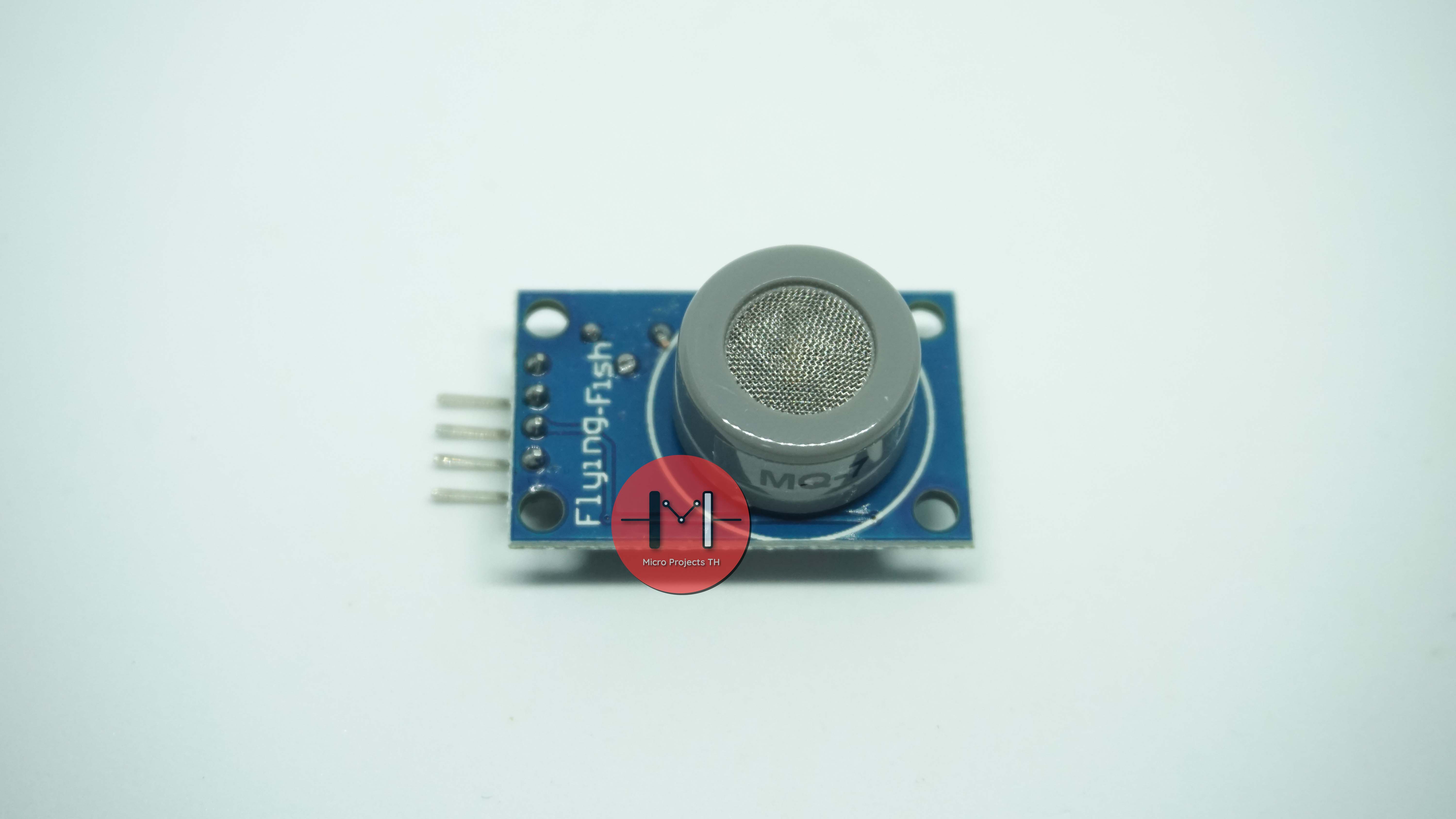

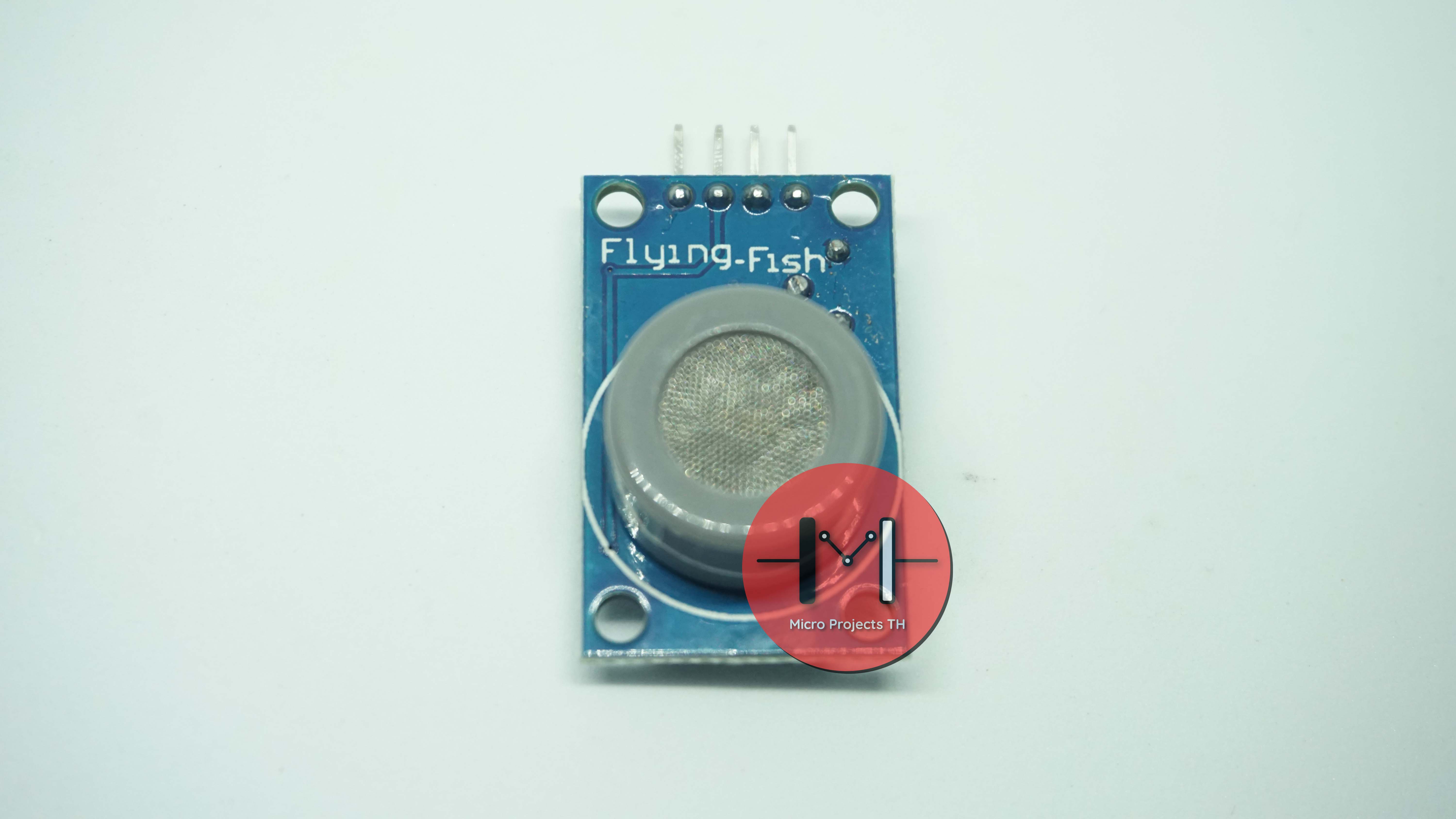

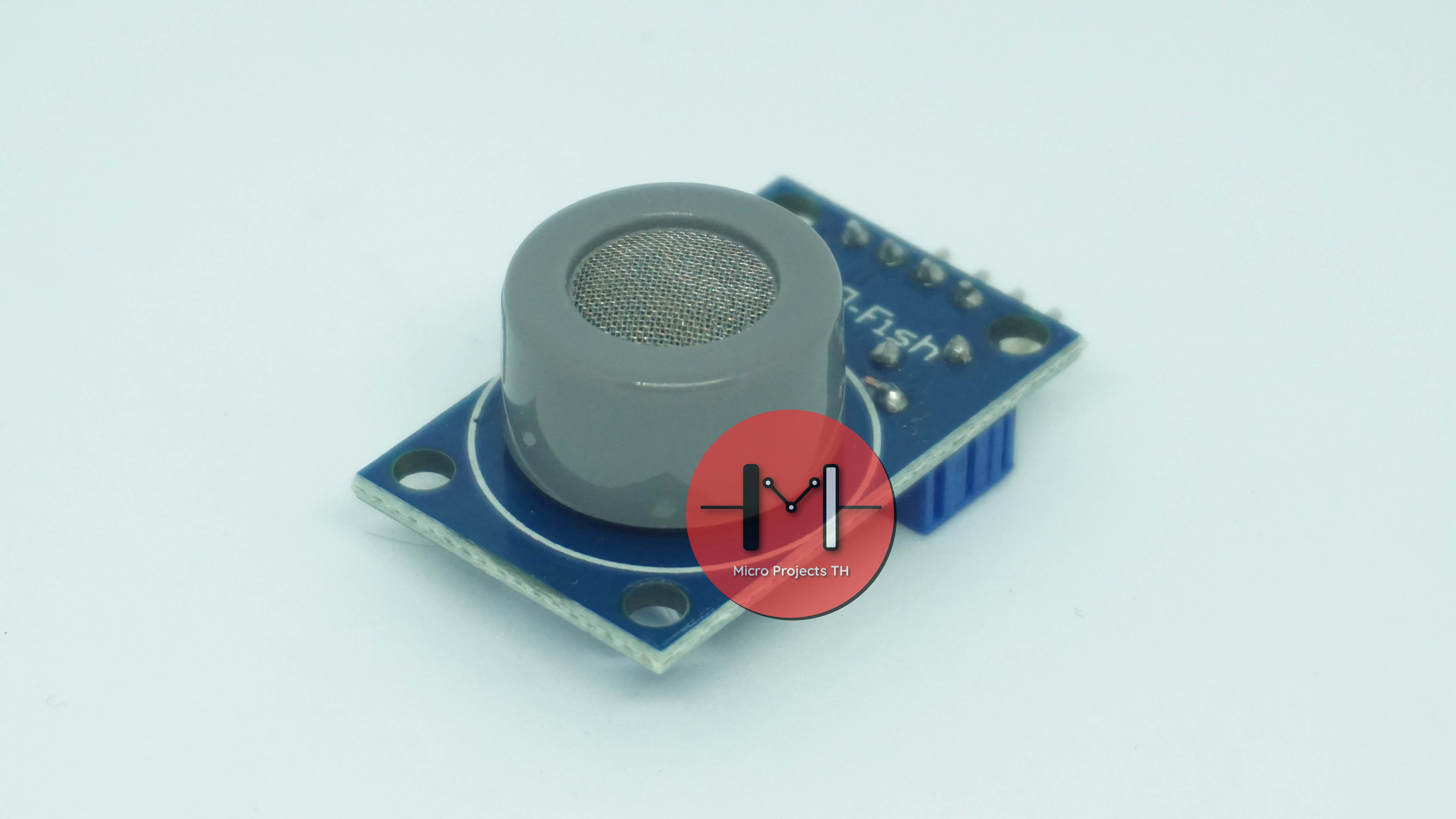

MQ-7 CO Carbon Monoxide Gas Sensor เซ็นเซอร์ตรวจจับก๊าซคาร์บอนมอนอกไซด์

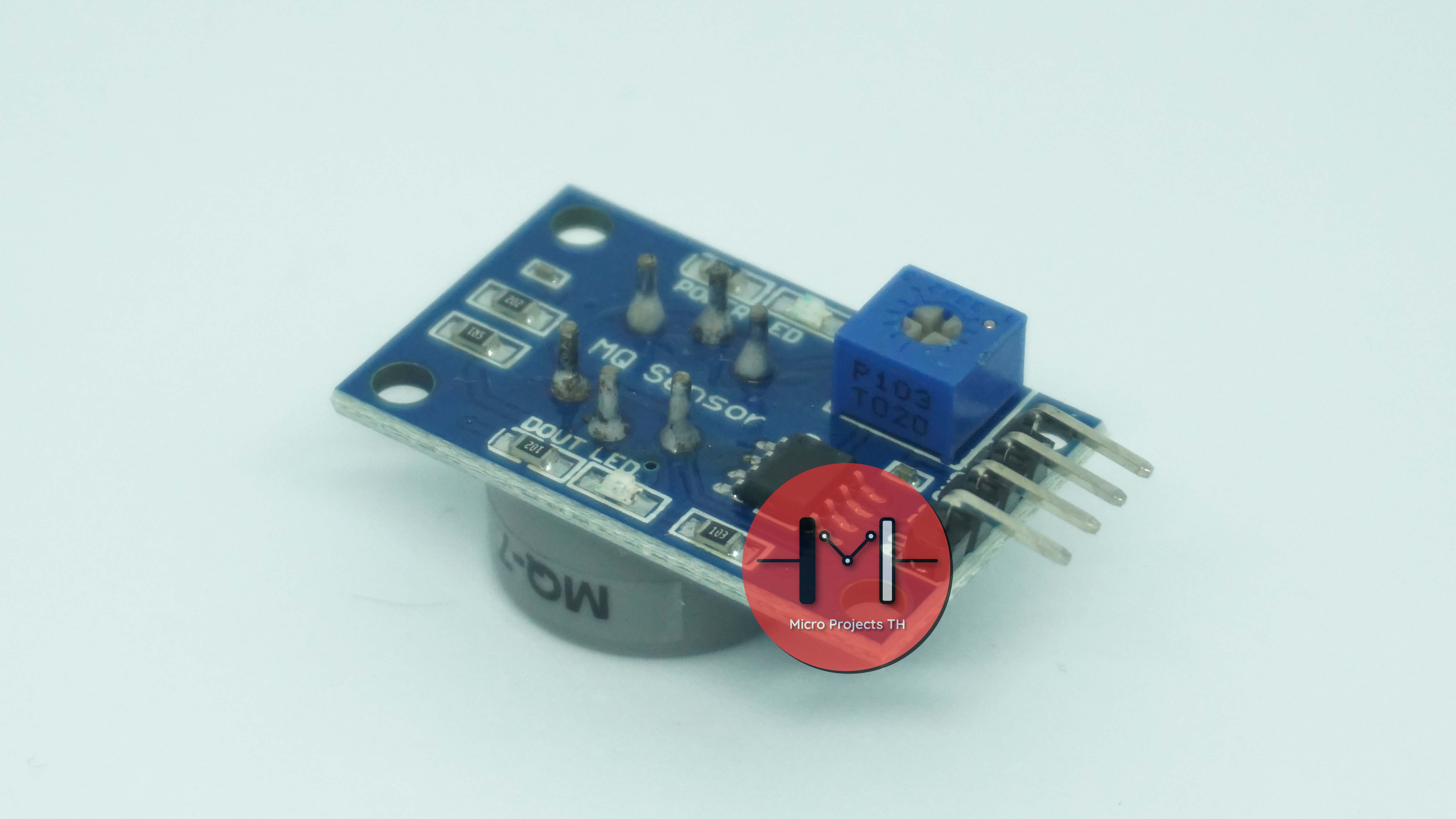

Using high-quality dual-panel design,with power indicator and TTL signal output instructions.

The switching signal having a DO (TTL) output and analog output AO.

TTL output valid signal is low. ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )

Analog output voltage with the higher concentration of higher voltage

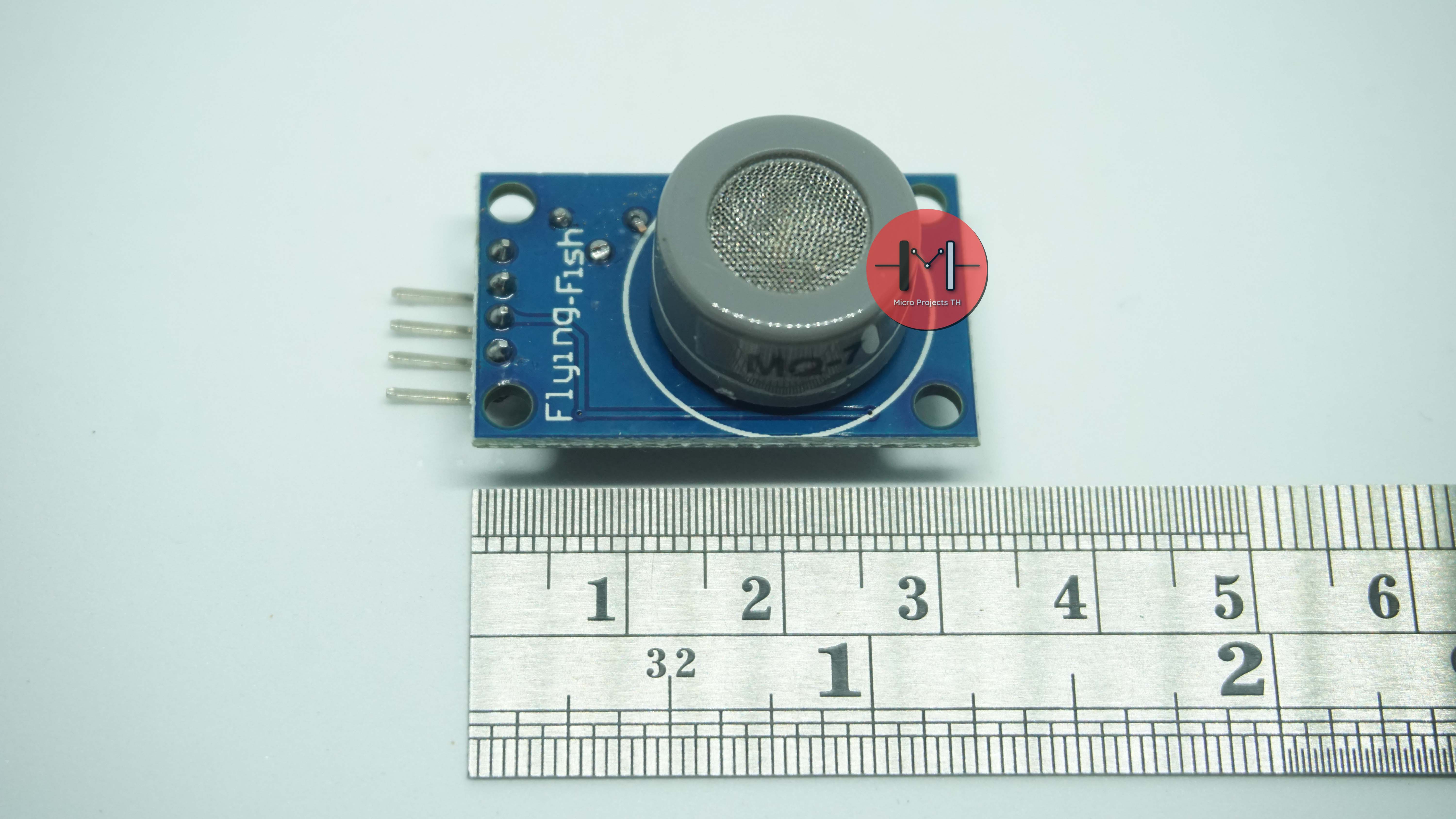

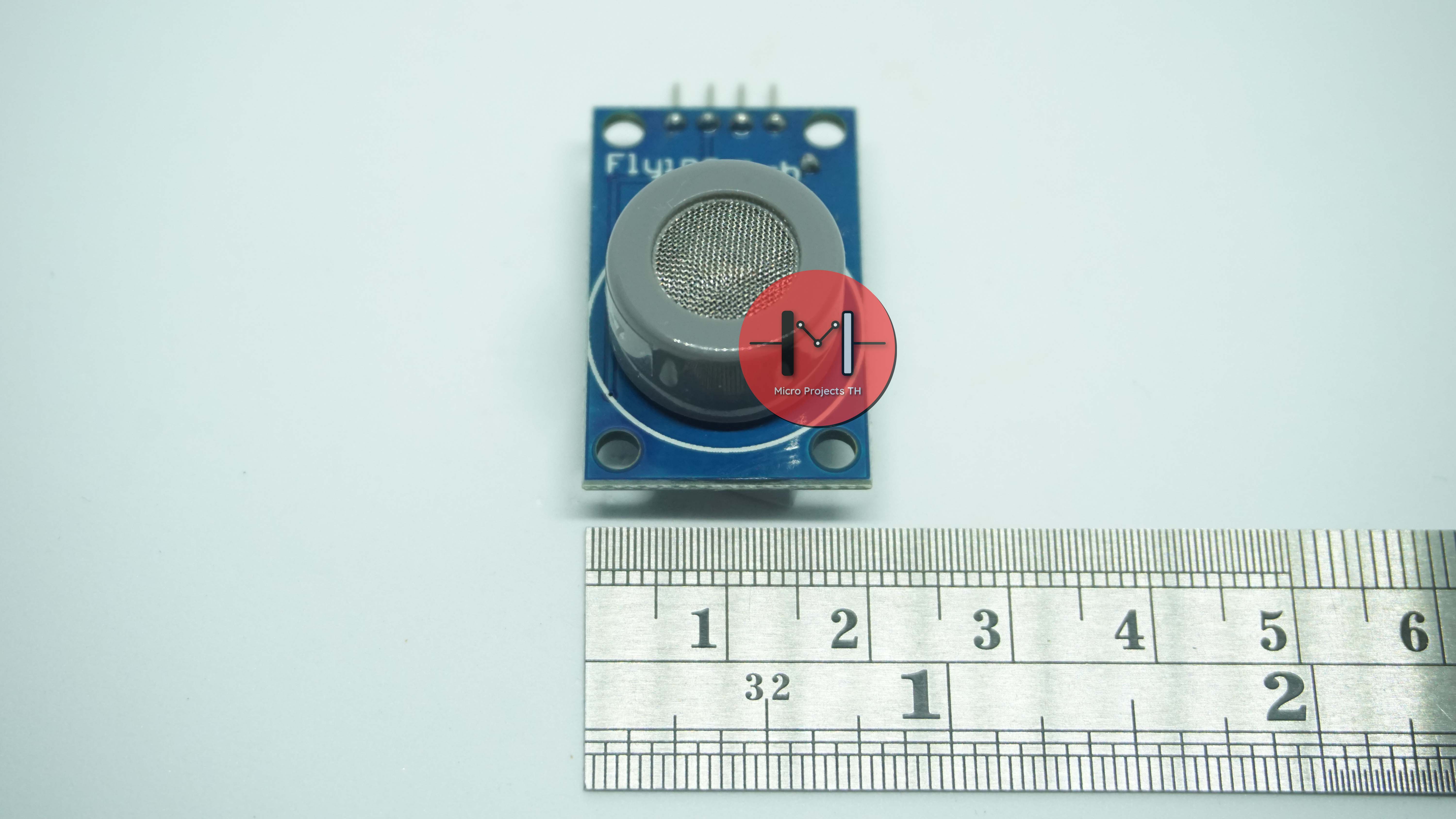

There are four screw holes for easy positioning.

Has a long life and reliable stability

Rapid response and recovery characteristic



Input voltage : DC5V Power consumption ( current ): 150mA

DO output : TTL digital 0 and 1 ( 0.1 and 5V)

AO output :0.1-0 .3 V ( relative to pollution ),the maximum concentration of a voltage of about 4V

Special note: After the sensor is powered,needs to warm up around 20S,measured data was stable,heat sensor is a normal phenomenon,because the internal heating wire,if hot is not normal .

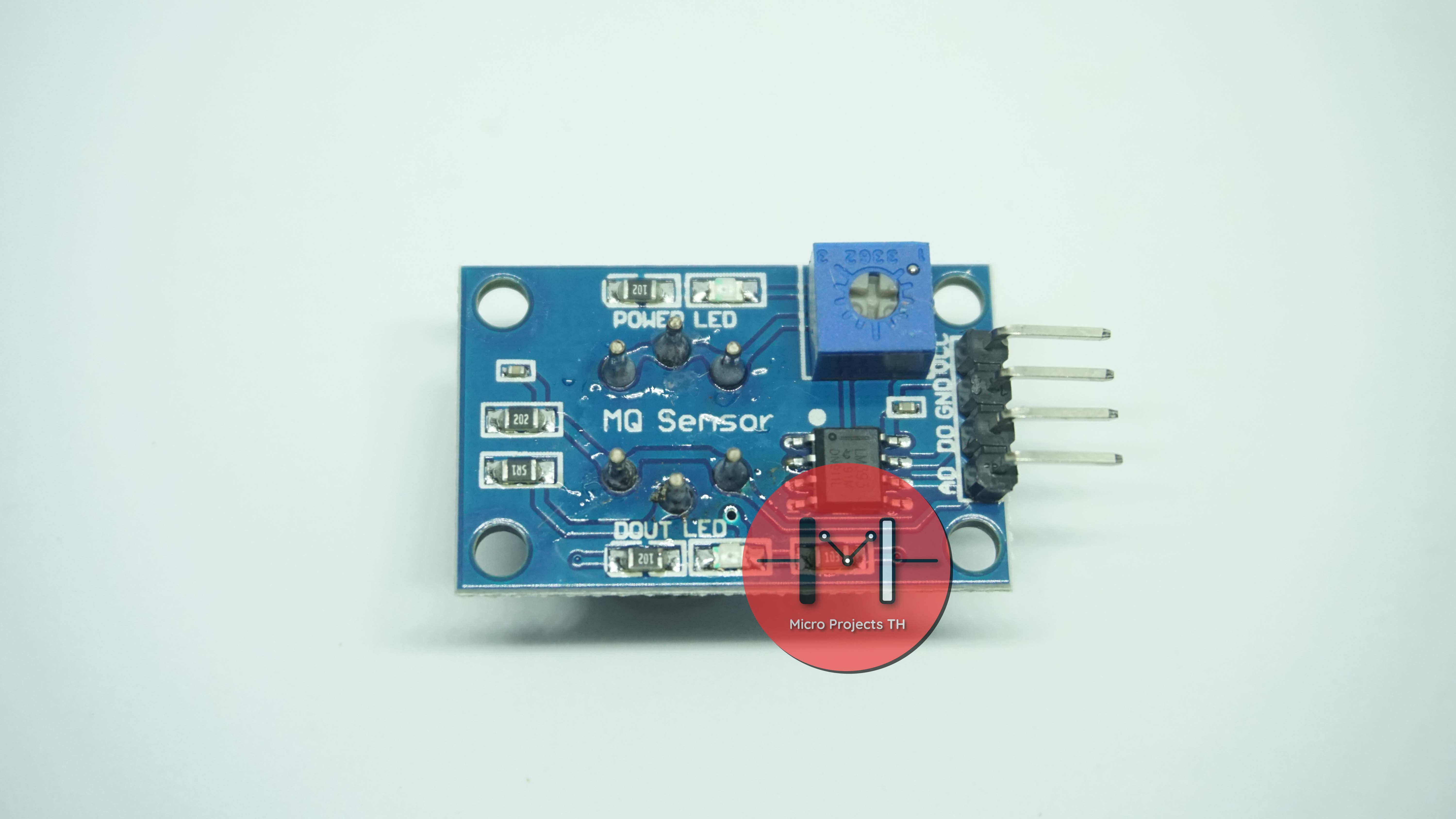

Wiring:

VCC: positive power supply (5V)

GND: power supply is negative

DO: TTL switching signal output

AO: analog signal output



NOTE: After the sensor is powered, need to warm about 20S, measured data becomes stable, heat sensor is normal
